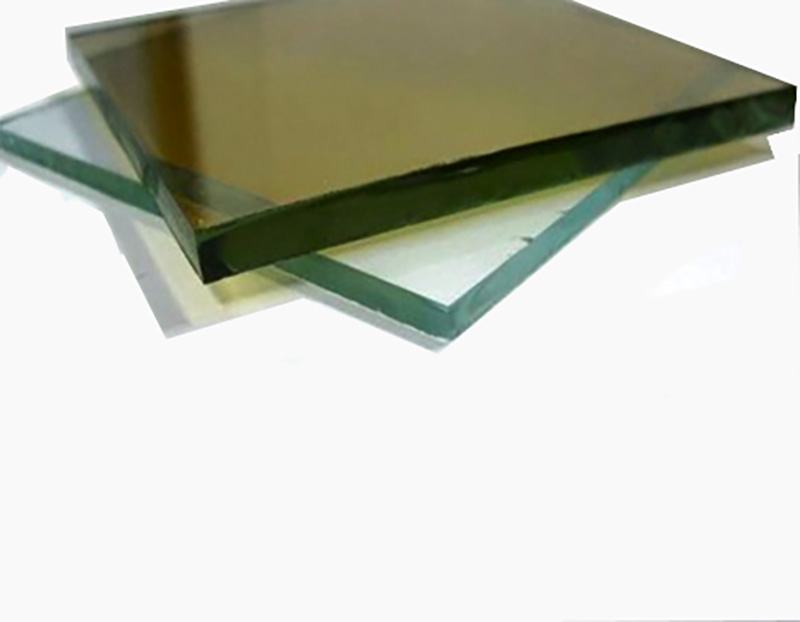

Golden Online Low-E Glass(60)

Golden Online Low-E Glass(60) China Manufacturer

BRAND: SSMG
GRADE:CLASS-A
COLOR: GOLDEN
THICKNESS:3 MM-19 MM
FILM SYSTEM: ONLINE LOW-E 60

Golden Online Low-E Glass(60) Size(mm):

1650*2140	1650*2250	1650*2440
1830*2140	1830*2250	1830*2440
3300*2140	3300*2250	3300*2440
3660*2140	3660*2250	3660*2440
5600*3300	11000*3300	CUSTOM SIZE

SEND QUICKLY REQUESTS

Description

SSM GLASS—GOLDEN ONLINE LOW-E GLASS(60) It adopts the world’s leading on-line coating technology, through high-temperature chemical vapor deposition (CVD) on the surface of high-quality ultra clear glass, annealed film and glass into one, with excellent chemical stability and mechanical stability, at the same time, the transmission and conductivity of the product reach a perfect balance. The on-line low-E energy-saving coated glass can meet the requirements of green buildings with high transmittance, low reflectivity, high thermal resistance and environmental protection and energy-saving. It can be widely used in civil residence, commercial curtain wall, electrical appliances, traffic locomotives and other fields.

Applications

To meet the requirement of energy saving and emission reduction in construction market, a new type of on-line low-E coating product is carefully designed. As building curtain wall and door and window materials, this product endows the building with elegant and elegant cold ash outfit and excellent sun shading function. It can greatly reduce the design capacity of HVAC system and change the scorching summer sun into soft light.

SSM GLASS—GOLDEN ONLINE LOW-E GLASS(60) can be used extensively in applications such as;

Advantages

Energy-saving: in winter, the film can reflect heat back to the building to prevent heat loss; in summer, shade the sun into the room, reduce the heat into the room, reduce air conditioning and other energy consumption
Dura: the hard film is integrated with glass.
Color: comfortable and beautiful appearance, no light pollution
Color: comfortable and beautiful appearance, no light pollution
Storage and transportation: stable performance, long storage time, long life of membrane surface, and long-term exposure to air.
Processing: easy to handle, easy to store (cut, sandwich, toughened, silk screen).
It can be used on a single chip.

Techonlogy

GOLDEN ONLINE LOW-E GLASS(60)-THERMOTECHNICAL AND OPTICS PERFORMANCE

Single glass Coating in Pos.2	Thickness （MM）	Visible Light			Solar energy(NRFC)		U-value W/m2K		SHGC	SC
		Trans mittance	Refle ctivity		Trans mittance	Refle ctivity	Winter Nightime	Summer daytime
			Outside	Inside
Golden online LOW-E GLASS(60)	5	43.0%	24%	35%	44.5%	27%	4.0	3.2	<0.5	0.6
	6	42.5%	24%	35%	44%	27%	4.0	3.2	<0.5	0.6
